Screws making machine

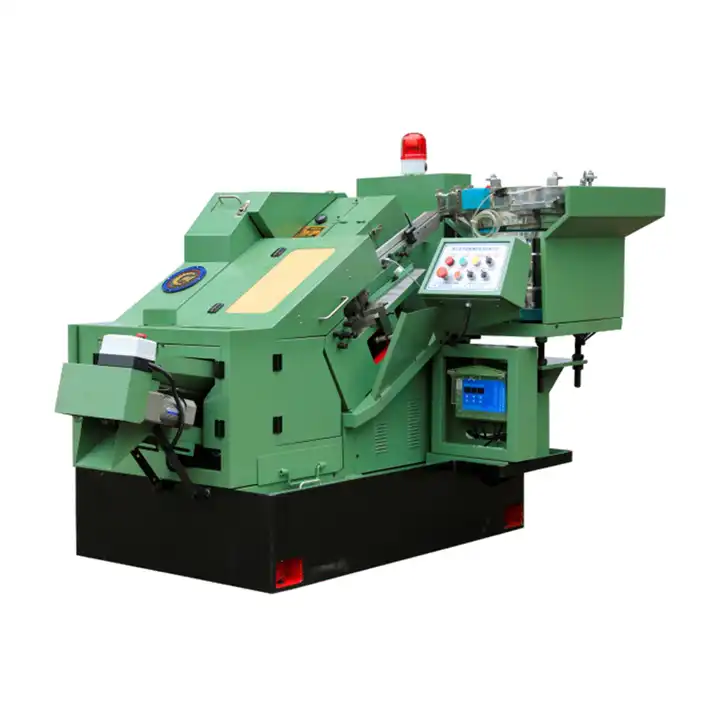

Automatic High Speed thread rolling machines/threading machine/steel bar thread rolling machine
Automatic High Speed thread rolling machines/threading machine/steel bar thread rolling machine
Automatic High Speed thread rolling machines/threading machine/steel bar thread rolling machine
Automatic High Speed thread rolling machines/threading machine/steel bar thread rolling machine
Automatic High Speed thread rolling machines/threading machine/steel bar thread rolling machine
Automatic High Speed thread rolling machines/threading machine/steel bar thread rolling machine

Automatic High Speed thread rolling machines/threading machine/steel bar thread rolling machine

Type: Thread Rolling Machine

Production Capacity: 110-140pcs/min

Max cutting off Length(mm): 60

Max cutting off Dia (mm): 6

Dimension(L*W*H): 1.8*1.1*1.1m

Power: 2.2KW

Weight (KG): 1800 kg

Warranty: 1 years



Automatic High Speed thread rolling machines/threading machine/steel bar thread rolling machine

Our machine has a long service life, simple operation and easy to use, we provide network

after-sales service for life. A strong behind-the-scenes team makes your purchase worry-free.




Max cutting off Length(mm)
60
Max cutting off Dia (mm)
6
Stroke (mm)
92
Main Motor (kw)
2.2
Capacity (Pcs/Min)
110—140
Weight (kg)
1800
Dimension (L*W*H) (m³)
1.8*1.1*1.1
forging station
6station


Summary of Block machine Summary


Main functions of thread rolling machine make products happen plastic deformation by pressing of two dynamic

and statics screw plates, and form the thread needed.





Threading Mold





The Screw making process


(1). Pull the coarse line to the line patch needed. (Wire drawing machine)
(2). Adjust, produce, and form the head of screw on the heading machine. (Screw heading machine)
(3).Grind tooth on the coil thread rolling machine, and form the screw completely (Thread rolling machine)
(4). Treat the semi-finished screw in the heat treatment according to the standard (Heat treatment furnace)
(5). According to the requirements, process plating etc. (Zinc plating machine)
(6). Packing and out of factory


  ·Production Sample







Selling Units:Single item

Package Type:seaworthy package










1.How about the quality of machines?
Our machines adopt advanced technology. Moreover, we carry out strict supervision during production and

make sure every finished product with high quality.


2.About the delivery time.

Generally, it will be about 10-15 working days after receive your deposit, which also will be on basis of your order.

3.About warranty.
We provide 12 months for warranty.

4.Which kind of payment is available for us?

The advance deposit paid by T / T is 30%, and the balance before t / T loading is 70%. You can also choose other

trading methods.


5.What kind of products we can supply ?

Auto concrete brick making machine, Auto hydraulic brick making machine, Free pallet automatic block forming

machine,concrete,mixer, Batching machine, Stacker, Cuber, etc.


6.How to make different size and shape brick by one machine?
By changing mould it can produce all types of standard building blocks.
